Thermal Management4xFAN
Controller
High-Precision Telecom-Grade Thermal Management
Four independent fan channels, dual-zone temperature sensing, and RS232 command intelligence — engineered to keep mission-critical infrastructure cool, quiet, and operational around the clock.
Engineering-Grade Features
Individual Fan Logic
Independent control of up to 4 DC fans with configurable RPM profiles. Staged activation reduces mechanical wear and extends MTBF.
Universal Fan Compatibility
Full support for 2-wire (voltage-controlled), 3-wire PWM, and 4-wire PWM (signal-controlled) DC fans. Total hardware flexibility.
Dual-Zone Temperature Monitoring
Dual digital temperature probes: one for solar loading (external/ambient) and one for internal heat dissipation. Holistic enclosure climate control.
Advanced RS232 Connectivity
Dedicated RS232 interface for real-time performance monitoring and custom thermal profile programming.
Integrated System Override
Two dry-contact hardwire inputs + RS232 logic for third-party SCADA or PLC control during maintenance or testing.
Critical Power Protection
External emergency shutdown for integration with power management systems (Low Voltage Disconnects). Prevents fans draining battery banks during critical power failures.
Universal Fan Compatibility
Full support across all standard DC fan configurations
Speed controlled via supply voltage variation. Simple, robust, wide industry adoption.
Voltage-speed control with tachometer feedback. Real-time RPM monitoring for fault detection.
Dedicated PWM control signal + tachometer. Precise speed regulation independent of supply voltage.
Staged Cooling Logic
Configurable temperature thresholds trigger sequential fan activation — power conservation, reduced noise, and extended MTBF through intelligent staging.

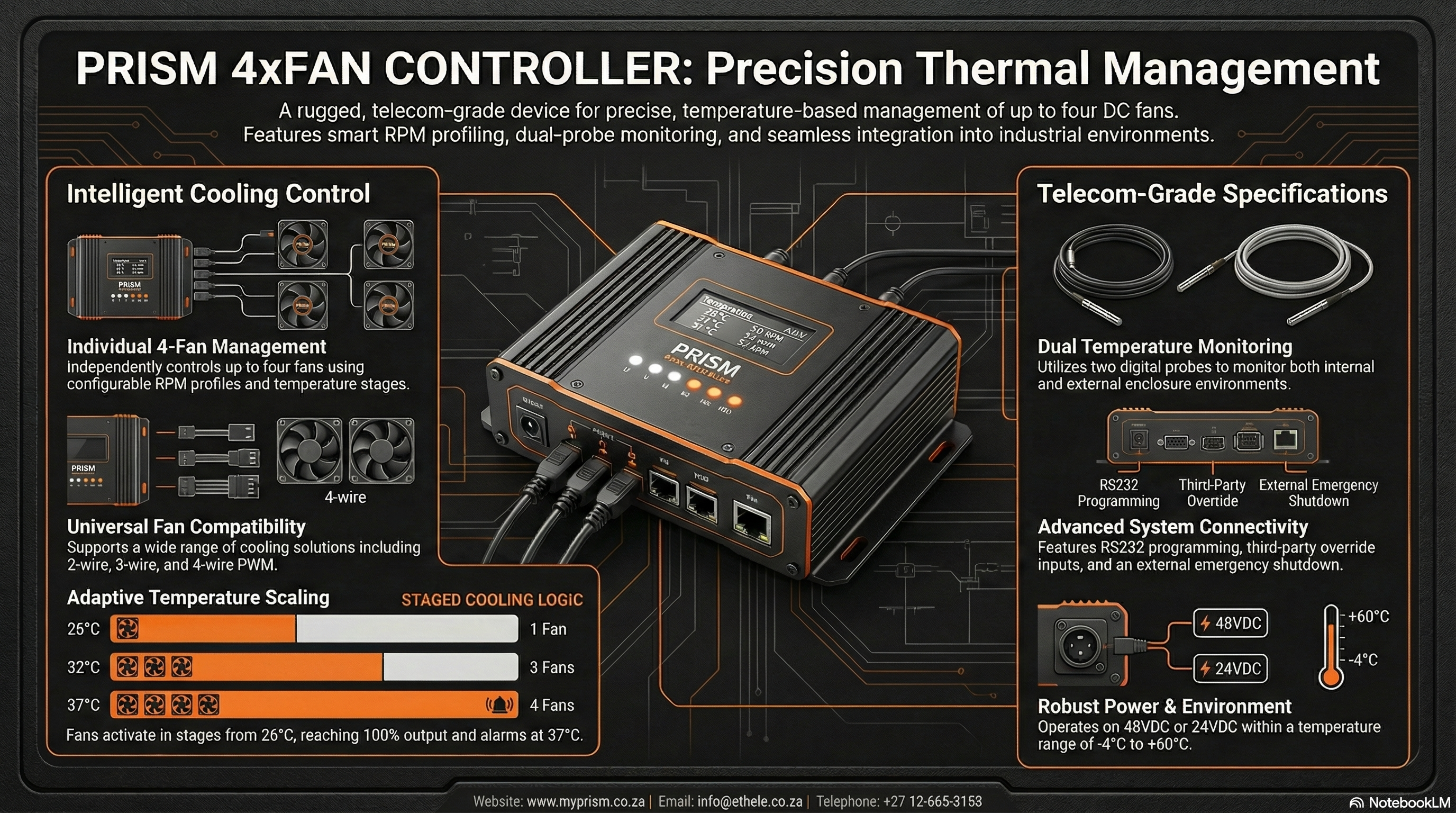

System Infographics

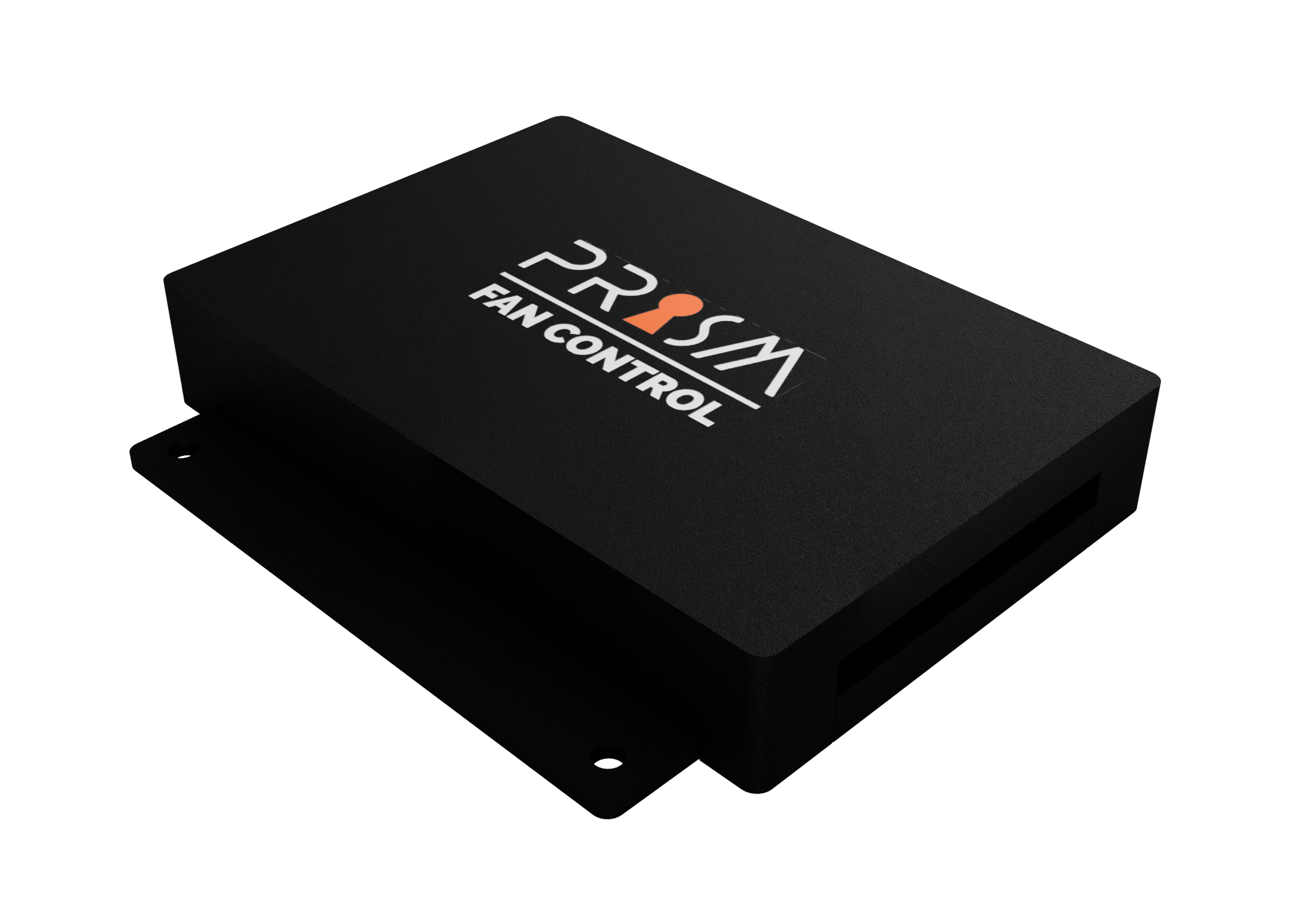

Engineered Housings
Available in transparent and solid black configurations
Technical Data Sheet
| Fan Channels | 4 × Independent DC Fan Outputs |
| Fan Compatibility | 2-wire / 3-wire PWM / 4-wire PWM |
| Temperature Probes | 2 × Digital (Internal + External) |
| Serial Interface | RS232 |
| Override Inputs | 2 × Dry-Contact Hardwire |
| Emergency Shutdown | External input (LVD compatible) |
| Alarm Output | 1 × Physical output (SCADA/monitoring) |
| Enclosure Options | Transparent / Solid Black |
Applications
Telecom Base Stations
Outdoor and remote enclosures demanding reliable thermal regulation in harsh environments.
Industrial Control Cabinets
Automation racks and PLC enclosures requiring precision thermal stability for continuous operations.
Battery Backup Systems
UPS installations where preserving battery life and preventing thermal runaway is mission-critical.
Edge Computing Sites
Remote compute nodes that demand precise thermal stability without on-site intervention.
The Invisible Guardians of
Your Infrastructure
Four-channel precision thermal control engineered for the environments that never sleep. Contact our team to specify the right solution for your deployment.
